Ion blower nozzles - Cesstech

Products

Ion blower nozzles

for discharging and cleaning

VARIO discharge products consist of a separate AC power supply unit for connecting one or more Eltex discharging components. In SINGLE discharging, the voltage generation (power supply unit) is integrated in the bar.

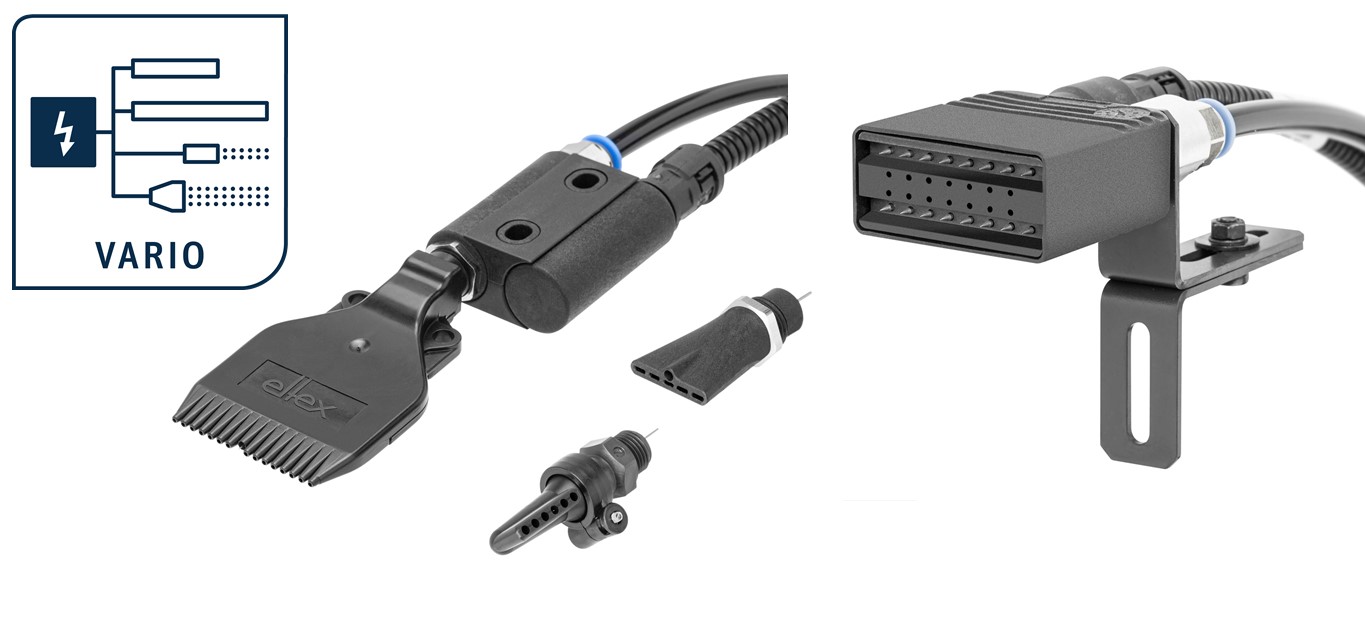

Ion blower nozzles flatBLOW R36E, R55E

Blower nozzles with flat ion jet
flatBLOW – Ion blower nozzles for almost any application
In our product group flatBLOW you can find all Eltex flat blower nozzles. From narrow to wide to angled nozzles, everything is included. The basic bodies R36E and R55E are available in straight and angled versions
Range: 10 – 500 mm
Permitted air pressure: 1 – 6 bar depending on nozzle

Download Datasheet

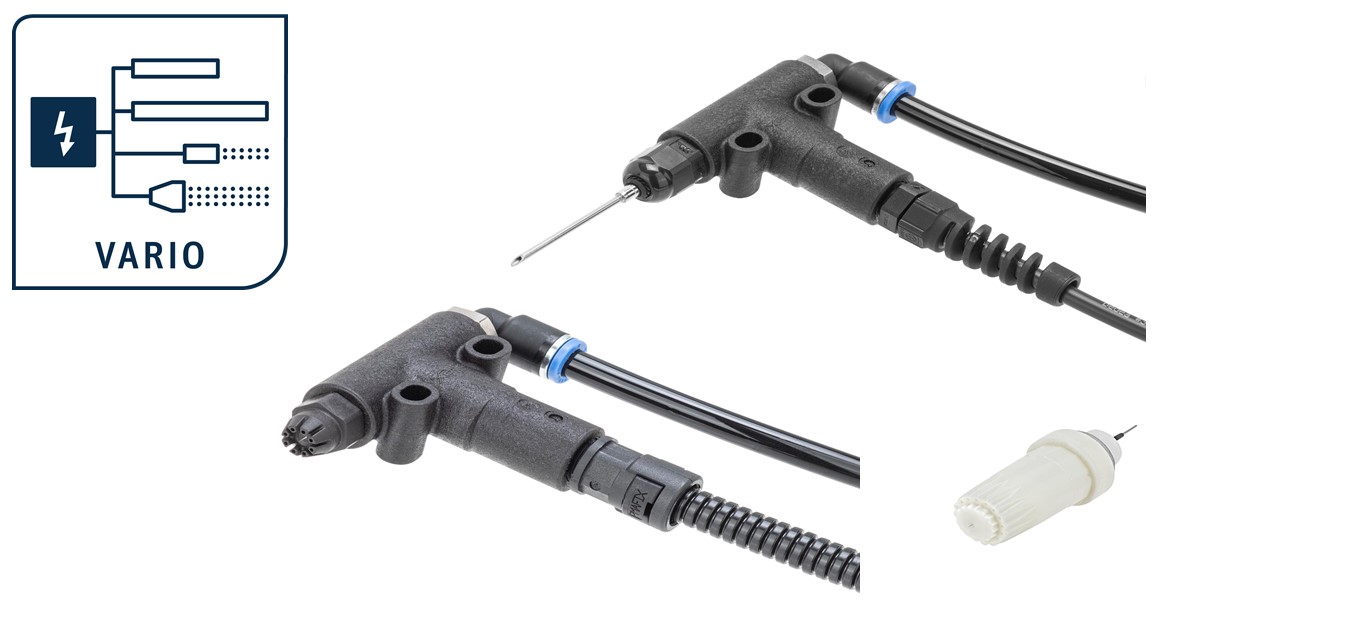

Ion blower nozzles roundBLOW R36E

Blower nozzles with round ion jet
roundBLOW – Ion blower nozzles for almost any application
In our product group roundBLOW you can find all Eltex round blower nozzles. From the cannula to the diameter Ø 19mm. The basic body R36E is available in straight and angled versions
Range: 10 – 150 mm
Permitted air pressure: 1 – 6 bar depending on nozzle

Download Datasheet

SCC Static Combi Cleaner

Blow-off station with rotating ion blower nozzles
The VARIO Static Combi Cleaner SCC is a highly effective cleaning unit that uses pulsating air jets to remove dust and dirt deposits on three-dimensional surfaces without contact
Due to the integrated discharge, the products are discharged during cleaning, which also improves the cleaning result
Range: 10 – 150 mm
Permitted air pressure: 6

Download Datasheet

pointCLEAN SCC-P

Discharge and cleaning in minisized format
The VARIO pointCLEAN SCC-P is a highly effective cleaning unit for the non-contact removal of troublesome dust and dirt deposits on three-dimensional, smooth or structured surfaces
Static adhering dust is discharged and blown off by a rotating nozzle with two air outlets
Range: 10 – 150 mm
Permitted air pressure: 2 – 6 bar depending on nozzle

Download Datasheet

lineCLEAN SCC-C

Cleaning unit with 2 mounted ion blower nozzles
The VARIO lineCLEAN SCC-C is a highly effective cleaning unit with two fixed ion blower nozzles
The ionizing blow-off station removes contactless disturbing dust and dirt deposits on three-dimensional, smooth or structured surfaces

Download Datasheet

Ion blower nozzle cleanBLOW R36E

Blower nozzles with rotating ion jet
cleanBLOW – ion blower nozzles/ cleaning nozzles
Our cleanBLOW product group includes the Eltex combiCLEAN and varioCLEAN rotary nozzles. The basic body R36E is available in straight and angled versions
Range: 10 – 200 mm
Permitted air pressure: 6 bar depending on nozzle

Download Datasheet

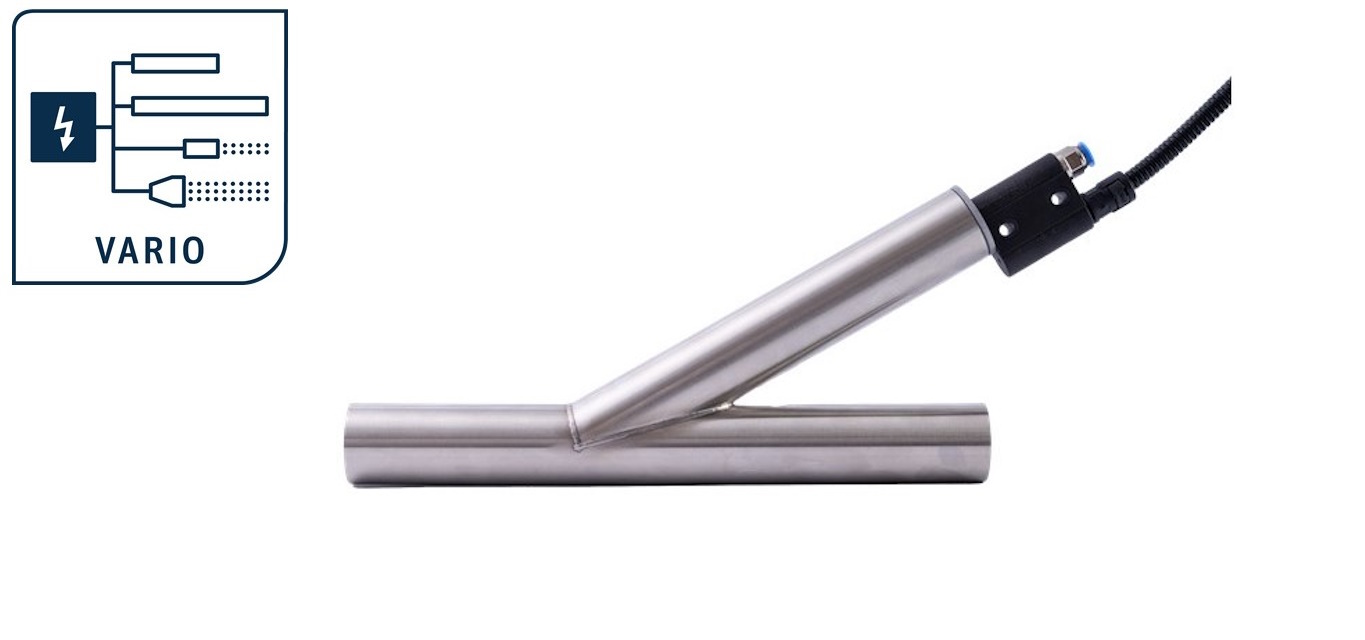

tubeBLOW EAR36E

For discharging inside of tube systems
With the VARIO Y-adapter tubeBLOW EAR36E it is possible to blow ions into closed tube systems
Variable diameters allow the ion blower nozzle to be connected to almost all common tube diameters
Permitted air pressure: 0 – 6 bar

Download Datasheet
