Discharging bars

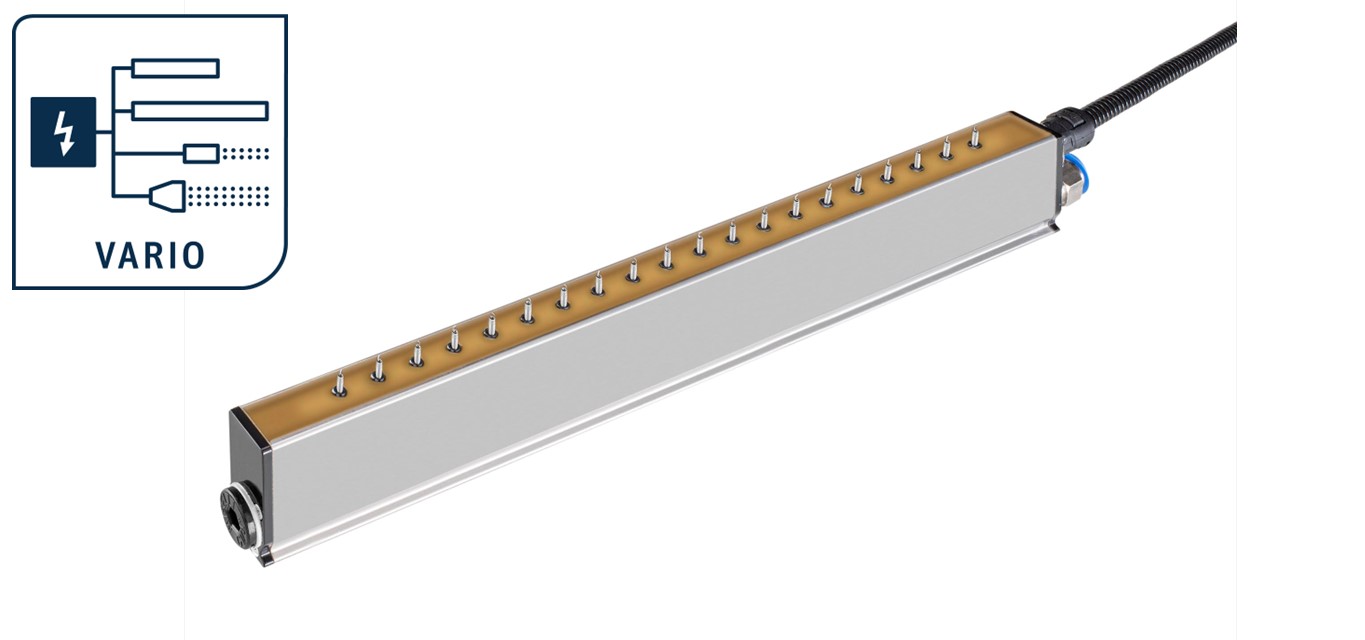

Discharging bar for highest performance
The VARIO discharging bar flexBAR R60L with its free-standing, air-assisted spring tips has a very high passive discharge effect, which enables active operation even at low AC high voltage. To increase the range, a small amount of air optionally flows through the hollow spring tip. The air flow additionally serves the continuous cleaning of the emission tip
Range: 30 – 1200 mm
Active length: 15 – 2715 mm
Dimensions: (WxH) 20 x 45 mm
Compressed air: optional

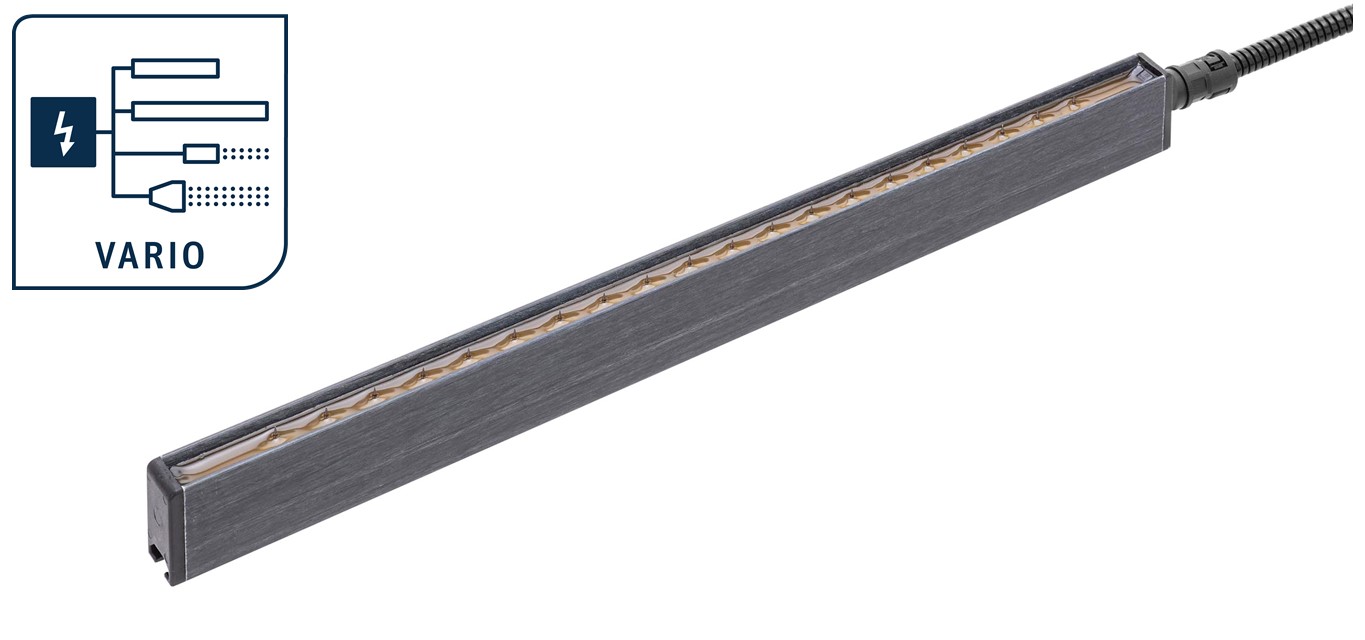

Proven high performance discharging bar
The VARIO discharge bar blueBAR R50 creates a significantly higher active discharge capacity than most discharge techniques. The isolated ground conductor enhances the E-field at the active tips, contributing to increased production and velocity of charge carriers. Thus, significantly more positive ions and free negative electrons are available than with conventional bars
Range: 30 – 800 mm
Active length: 15 – 5910 mm
Dimensions: (WxH) 16 x 32 mm

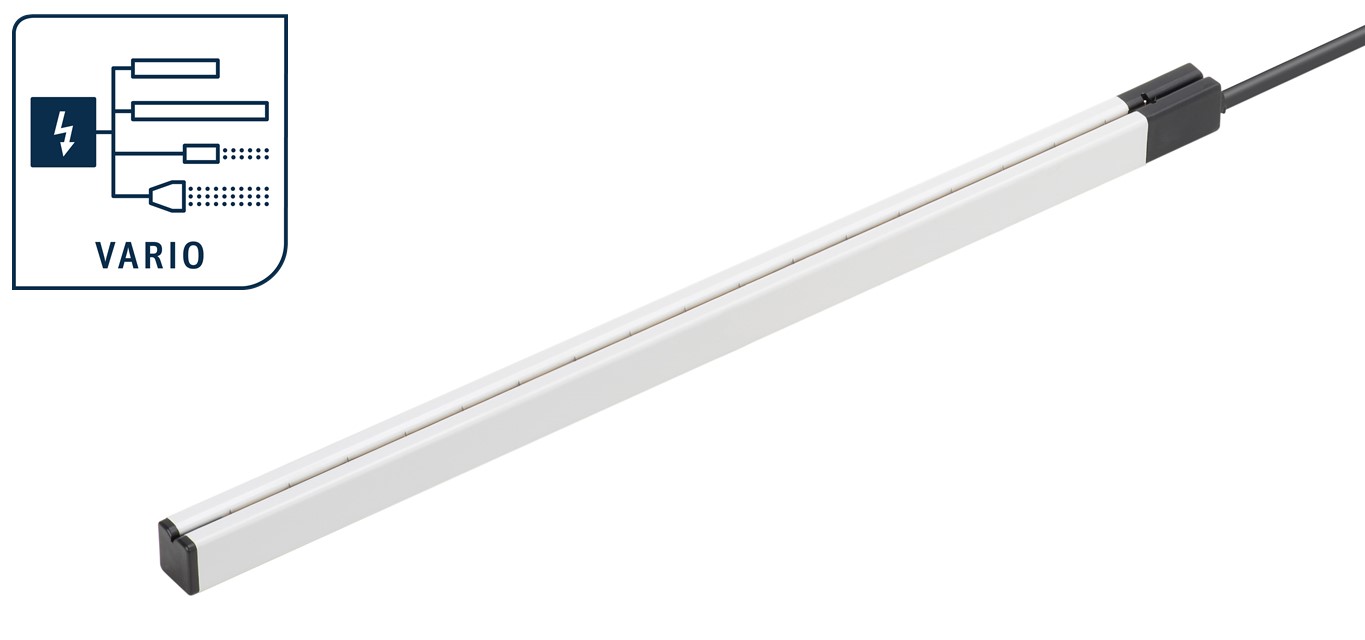

Compact discharging bar
The particularly small and cost-effective slimBAR R47 combines proven Eltex know-how with a favorable price. Due to compact dimensions, the slimBAR R47 fits a wide range of applications
Range: 30 – 400 mm
Active length: 120 – 1860 mm
Dimensions: (WxH) 18 x 18 mm

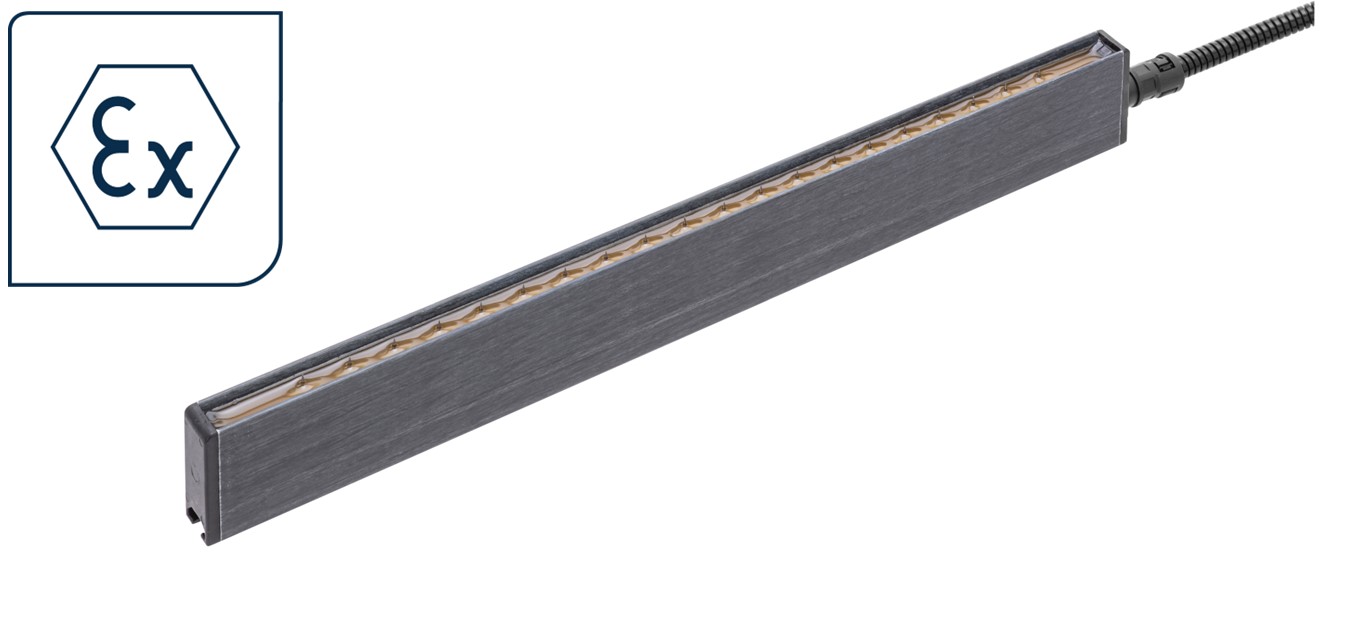

Discharging bar for EX zones
The exBAR EXR5C is operated with an AC voltage of 5 kV at 50…60 Hz and is approved for use in Group IIG and IID potentially explosive atmospheres. Corresponds to equipment category 2 (zone 1 operating equipment)
Range: 30 – 300 mm
Active length: 15 – 5910 mm
Dimensions: (WxH) 16 x 40 mm

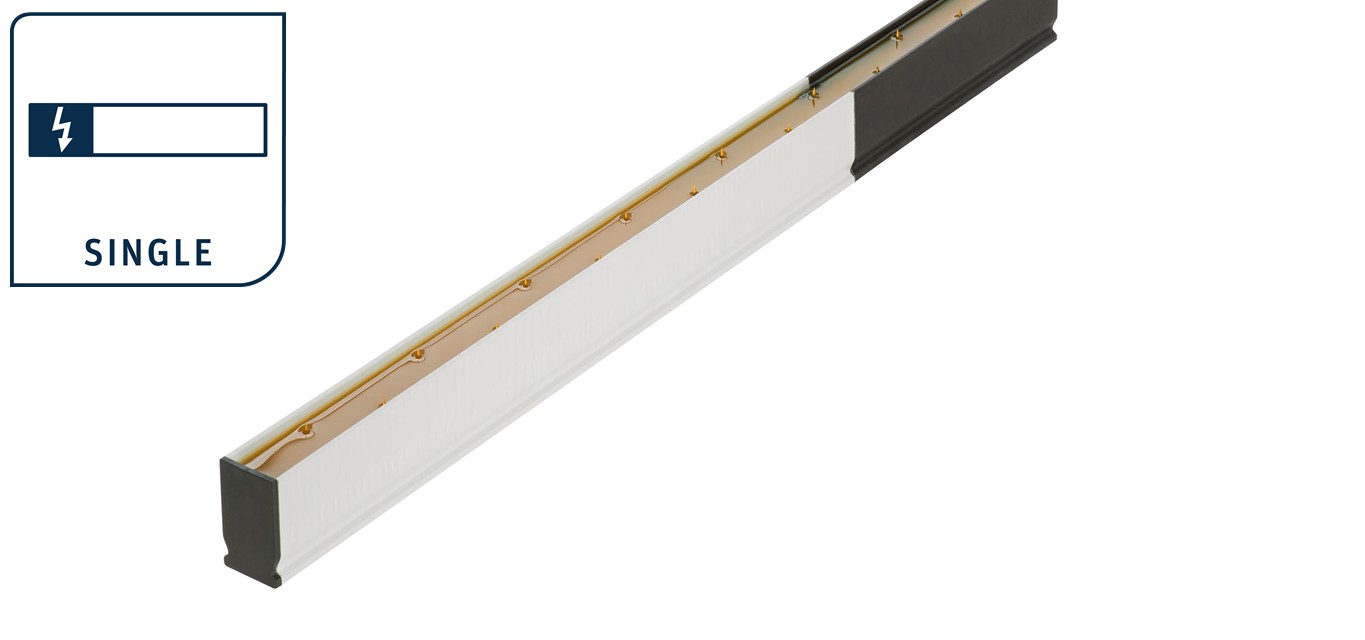

Discharging bar with integrated power supply
In the SINGLE Smart Discharging System, components such as power supply, output stage and measurement technology are completely integrated into the slim electrode profile. Ideally suited for discharging in the medium distance and speed range
Range: 100 – 1200 mm
Active length: 330 – 3990 mm
Dimensions: (WxH) 24 x 39 mm

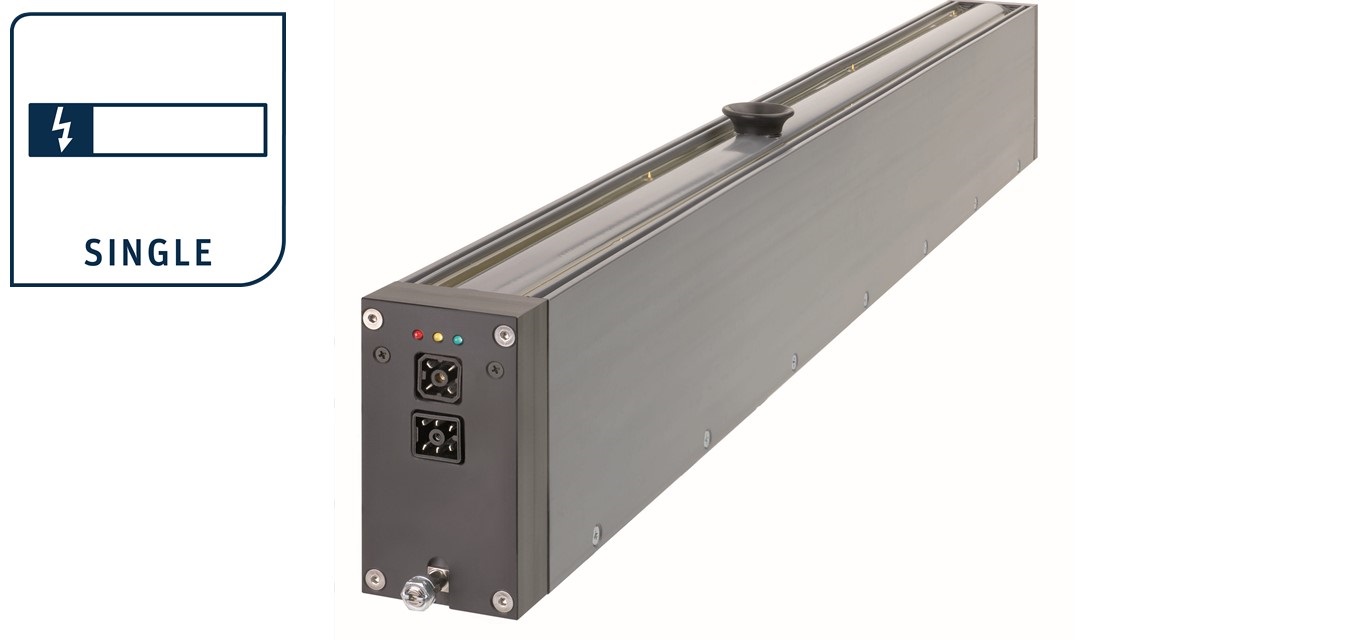

Discharging bar with integrated power supply for long distances
The intelligent sensor technology of the SINGLE ionSTAR RX3 discharging bar continuously detects the distance and existing charge of the object to be discharged and automatically adjusts the output power to the conditions currently present
Range: 200 – 1500 mm
Active length: 848 – 3008 mm
Dimensions: (WxH) 109 x 58 mm

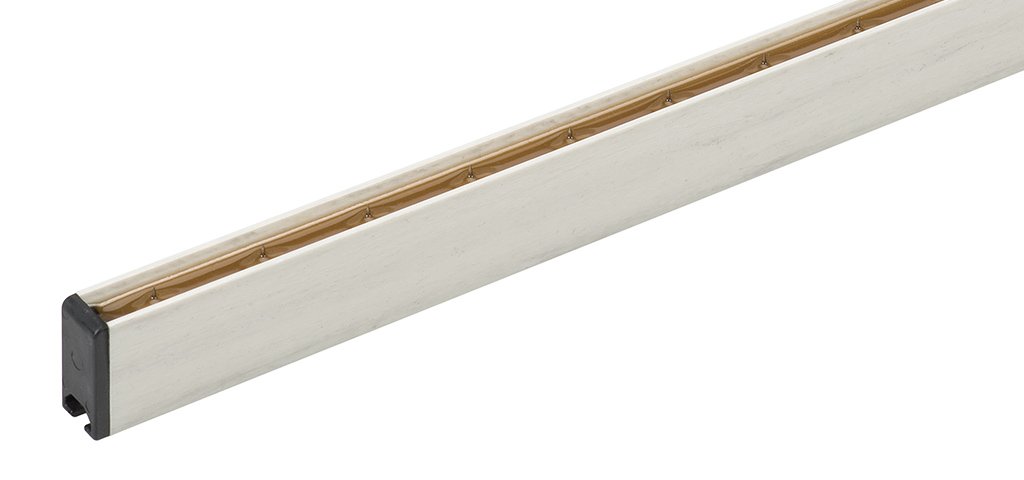

Passive discharging bar
The SINGLE discharge bar passiveBAR RG52 is available for passive discharging of electrostatic disturbances in the production process. The passivBAR RG52 is suitable for discharging moving surfaces. The optimal geometrical arrangement of the tips ensures effective passive discharging
Range: 5 – 50 mm
Active length: 30 – 5940 mm
Dimensions: (WxH) 16 x 32 mm
