Active grounding systems with process monitoring (TERRABOX)

Safe monitoring and process release through continuous measurement of the ground connection

Using their intrinsically safe electrical circuit, Eltex grounding systems monitor and check the entire connection between an object contacted with the ground tester (tanker vehicle, container etc.) and the equipotential bonding conductor. If the safe and correct connection is detected and the integrated changeover contacts are switched accordingly, optical or acoustic signal transmitters, interlocks, pumps, valves etc. can be activated. This ensures safe and reliable dissipation of any electrostatic charges.

In conjunction with the Eltex ground testers, Rewinding Cable Reels or ground cables, Eltex grounding systems ensure that your processes cannot be started until safe electrostatic grounding is present.

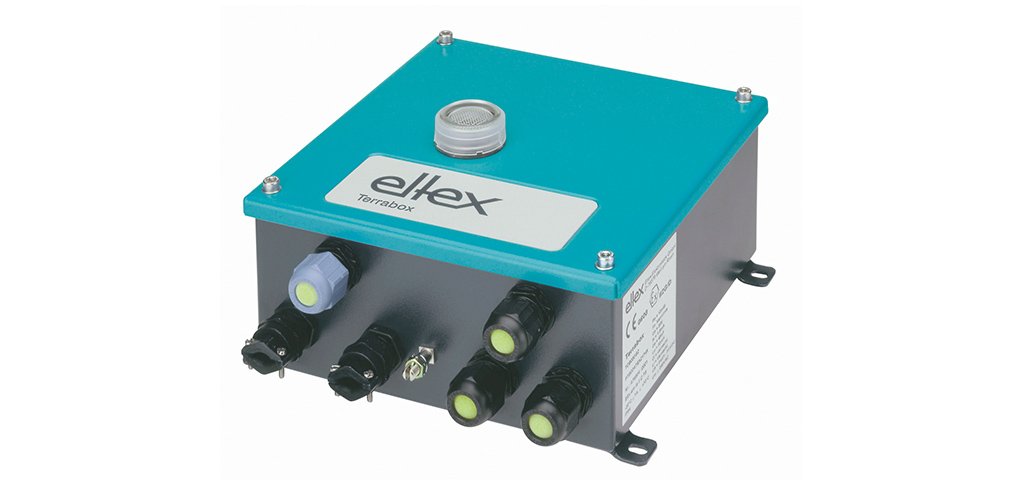

TCB030

  • TERRABOX grounding system
  • Terrabox TCB030 is designed for direct installation in explosion hazard areas and for connecting a clamp
  • Two clamps are connected when used for BIG BAG grounding. The dual-color indicator lamp signals the correct grounding state
  • The integrated contacts allow an enable circuit to be implemented
  • Product features:
  • Installation in Ex areas, Zone 1 + 2 (21 + 22)
  • Resistive ground monitoring device
Download Datasheet

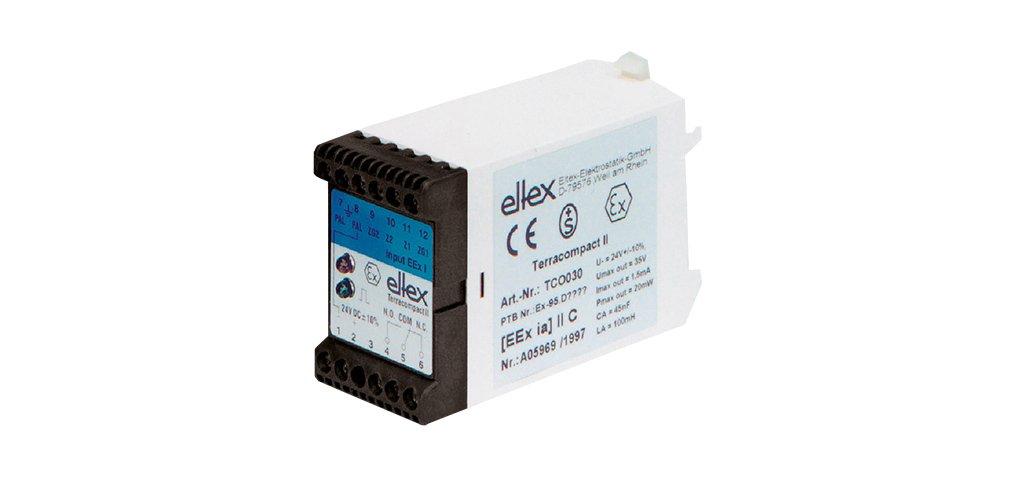

TCO030

  • TERRACOMPACT II
  • During filling or decanting processes involving solid or liquid materials in the Ex area, the Eltex Terracompact II automatically identifies faulty or defective ground links in the installation. If the floating changeover contact is switched accordingly, it shuts off the process
  • The Terracompact II is a standard housing for assembly on a DIN 46277 top-hat rail for installation in a control cabinet or a control room
  • Product features:
  • Intrinsically safe electrical circuit, approved for Zones 1 + 2 (21 + 22)
  • Installation in control cabinet
  • esistive ground monitoring device
Download Datasheet

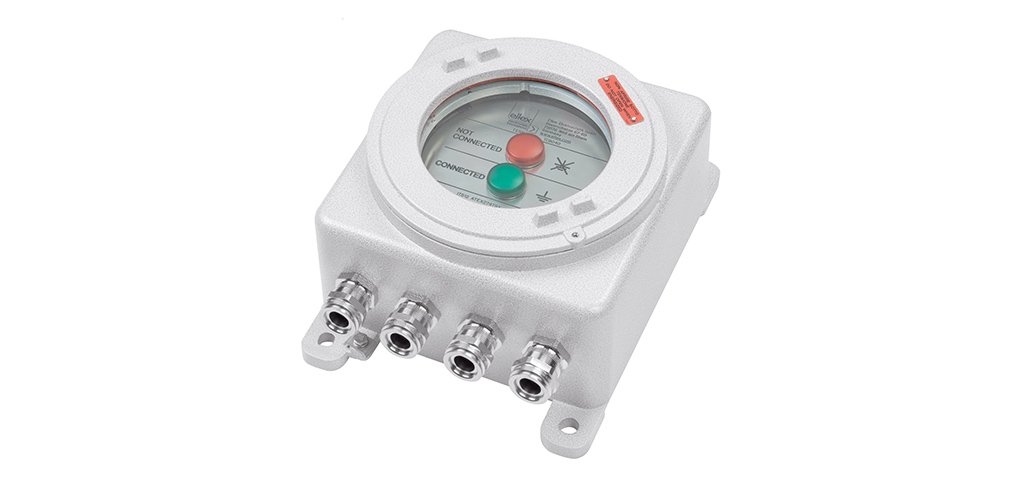

TERRACAP TCB040-V2

  • TERRACAP grounding system
  • The TERRACAP TCB040-V2 capacitive ground monitoring system identifies a low-resistance connection using the connected ground clamp
  • If a connection is identified, the device discharges electrostatic charges safely via a resistor, which prevents a discharge spark from forming. The control unit then checks the capacitance detected at the clamp
  • If the capacitance for the tanker truck is correct, a green display lights up and the interlocking relay enables the pumping process
  • The device then forms a low-resistance connection to ground, which prevents further build-up of electrostatic charges
  • Product features:
  • Fullfils requirements in accordance with SIL2
  • Capacitive ground monitoring device
  • Installation in Ex areas, Zone 1 + 2 (21 + 22)
Download Datasheet

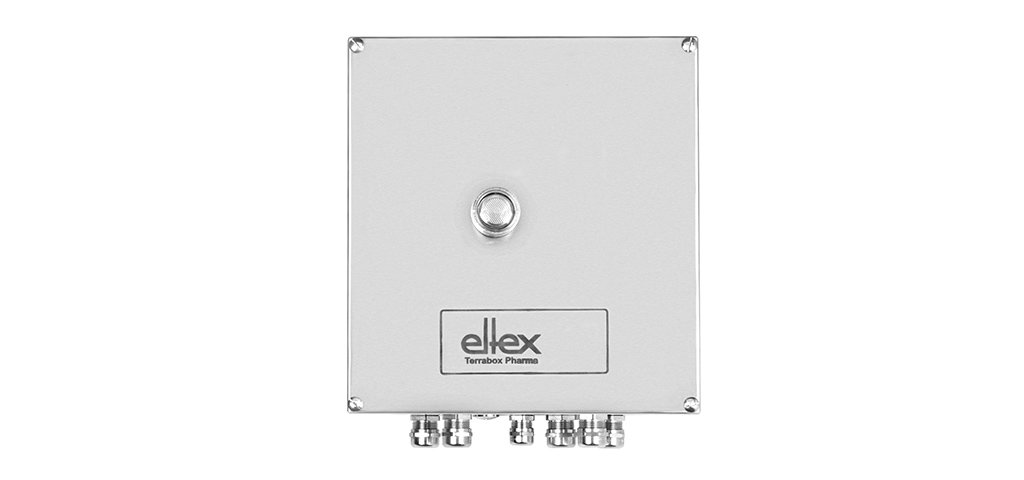

TERRAPHARM

  • Grounding system
  • The TERRAPHARM grounding device combines proven TERRABOX technology with the specific material requirements of the pharmaceutical industry
  • Product features:
  • Installation in Ex areas, Zone 1 + 2 (21 + 22)
Download Datasheet

Active grounding clamps

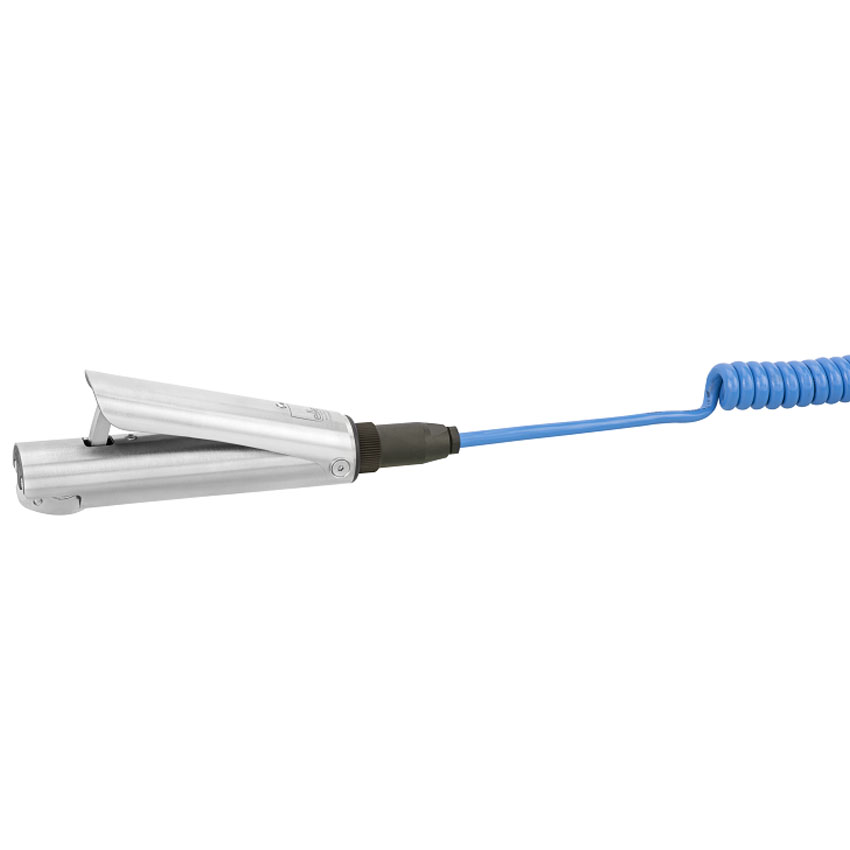

  • Clamps TERRA-C/S, TERRA-C/B, 70AK, 70HK
  • The active Eltex grounding clamps from the TERRACLAMP and the 70 series are used together with the TERRALIGHT and the Terra-Control TUE30 ground monitoring system to establish and monitor grounding connections. These devices are used when decanting or filling potentially explosive substances. Existing electrostatic changes are discharged effectively in a controlled manner
  • The active grounding clamps from the TERRA-C/S, TERRA-C/B, 70AK and 70HK series feature extremely hard and sharp collet jaws. The jaws also feature a continuously high clamping force, ensuring a secure connection to the equipotential bonding at all times. The standard version of the grounding clamps includes a plug-in-connector for an easy connection to the included grounding cable, spiral cable and rewinding cable reels
  • Product features:
  • Use in Ex areas, Zone 1 + 2 (21 + 22)
  • Various versions and sizes
Download Datasheet

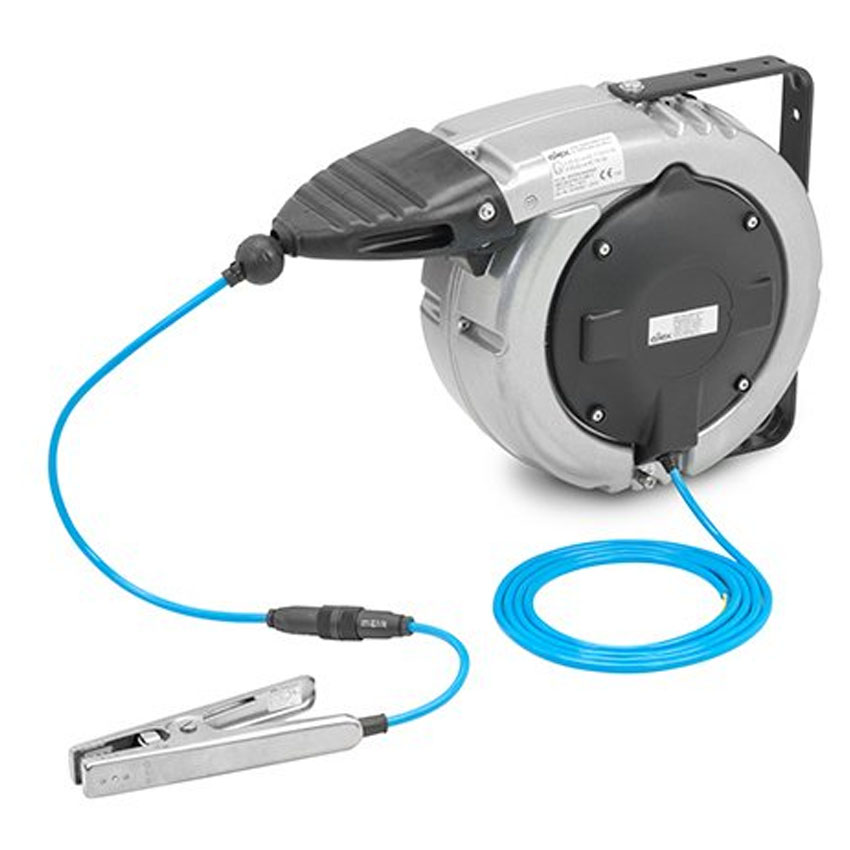

601KR/AW, 601KR/DW, 601KR/KW

  • Cable rewinders, active grounding
  • The cable rewinders 607KR rewind the grounding cable after use of the ground contactor, protecting the cable from damage. Several versions are available:
  • The cable rewinders 601KR/AW and 601KR/DW come in an impact resistant aluminum casing and the cable rewinder 601KR/KW comes in an impact resistant plastic casing. All cable rewinders are appropriate for use in the explosion hazardous areas 1 and 21. Different designs of ground clamps are available
Download Datasheet

Ground cables for active grounding

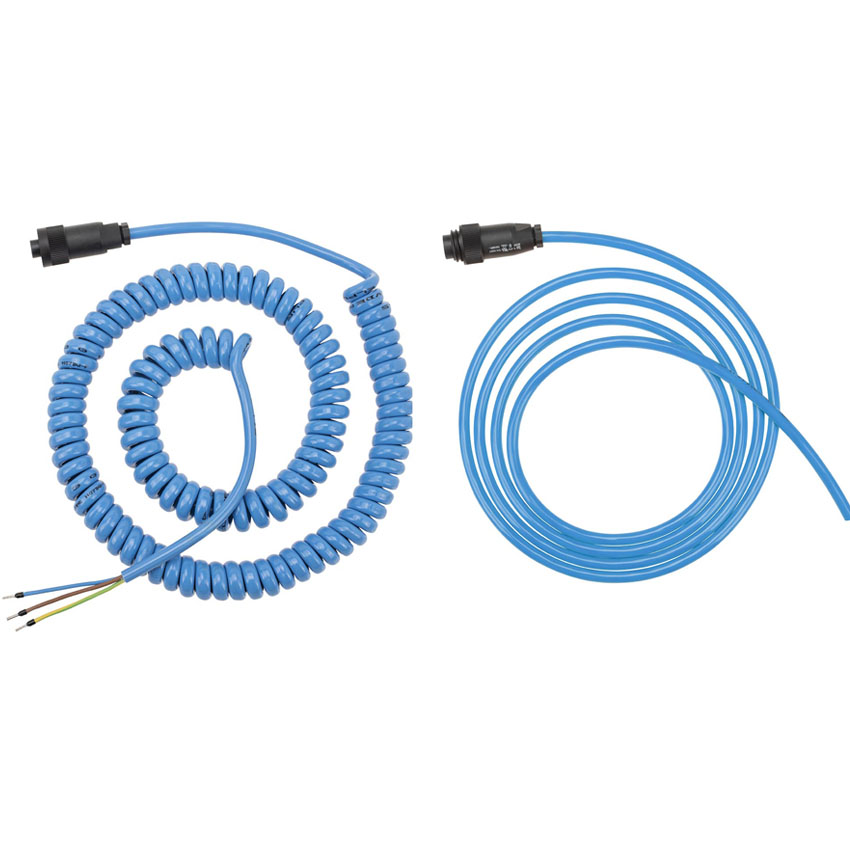

  • Ground cables as spiral or standard cables
  • The prefabricated Eltex ground cables for active grounding ensure an easy-to-install connection between the ground tester and grounding unit. The cables are already fabricated for connection to the corresponding grounding unit. A suitable IP67 plug-in coupling is installed for connection to the ground tester
  • Due to the intrinsically safe electrical circuit, the active ground cables are supplied in the color light blue and are available as standard ground cables or spiral ground cables. The standard cables are available in lengths of 5 to 95 m in 5 m increments, while the spiral cables come in the lengths 5 or 10 m (stretched)
  • Product features:
  • Cable color light blue, 3-core, high mechanical strength
  • high resistance to a variety of chemicals
Download Datasheet
